SDS Vision

Engineered for environments where security reliability and operational continuity are essential, the system enables continuous monitoring of vehicles entering or exiting protected areas.

The system performs a fully automated, full-coverage scan of the vehicle undercarriage while the vehicle passes through the inspection point. High-definition imaging technology captures detailed views of the entire underside of the vehicle, supporting the detection of suspicious objects, unauthorized structural modifications, or concealed items that may pose a security threat.

KEY APPLICATIONS

SecurSCAN® SDS Vision PRO is particularly suited for high-security installations and controlled access points, including:

MILITARY INSTALLATIONS AND DEFENSE FACILITIES
AIRPORTS AND AVIATION SECURITY CHECKPOINTS
DIPLOMATIC PREMISES AND EMBASSIES
PORT AREAS AND MARITIME TERMINALS
STRATEGIC INDUSTRIAL FACILITIES
LOGISTICS HUBS AND CRITICAL INFRASTRUCTURE SITES
SENSITIVE PERIMETERS REQUIRING CONTINUOUS VEHICLE SCREENING

By combining high-resolution imaging, automated analysis tools, and centralized system management, SDS Vision PRO provides security operators with a powerful solution for vehicle inspection in environments where reliability, traceability, and operational efficiency are crucial.

SERVICE TYPE
PRICE STARTS FROM
Silencer Coating
$ 49.99
Anti Rust Coating
$ 12.99
Feugiat scelerisque
$ 45.99
Car Varius
$ 23.99
SERVICE TYPE
PRICE STARTS FROM
Silencer Coating
$ 49.99
Anti Rust Coating
$ 12.99
Feugiat scelerisque
$ 45.99
Car Varius
$ 23.99

STANDARD FEATURES

UNDER VEHICLE SCANNING

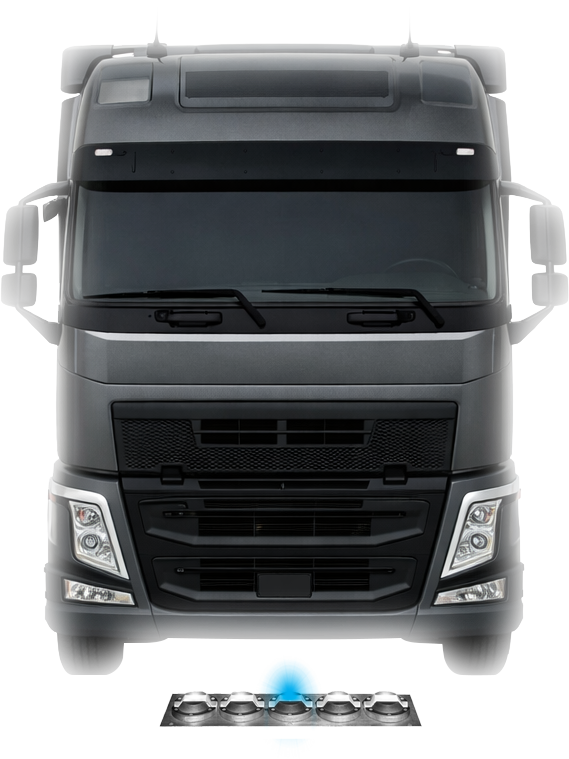

The vehicle undercarriage is scanned as it passes over the system; the high-resolution image is automatically stored.
LICENSE PLATE RECOGNITION
The integrated ANPR camera automatically captures and records the vehicle’s license plate upon passage, associating it with the undercarriage inspection data.

ADVANCED OPTIONS

HD PERIMETER VIDEO SURVEILLANCE
Video system consisting of 4 IP67 HD cameras with integrated NVR, enabling real-time monitoring of the area surrounding the vehicle and automatic video recording within…
AI DETECTION MODULE
Artificial intelligence module for automatic image analysis and detection of potentially dangerous objects (IEDs, weapons, knives, etc.), even if partially concealed. Does no require internet…
AUTOMATIC COMPARISON
AI system capable of automatically comparing the current undercarriage scan with the previous one of the same license plate. detecting any structural differences or anomalies.…
AGGREGATION SERVICE
Dedicated server for interconnecting and aggregating multiple SDS Vision systems installed at different sites, with a shared database for centralized management.

MAIN COMPONENTS

image front image back image displacements

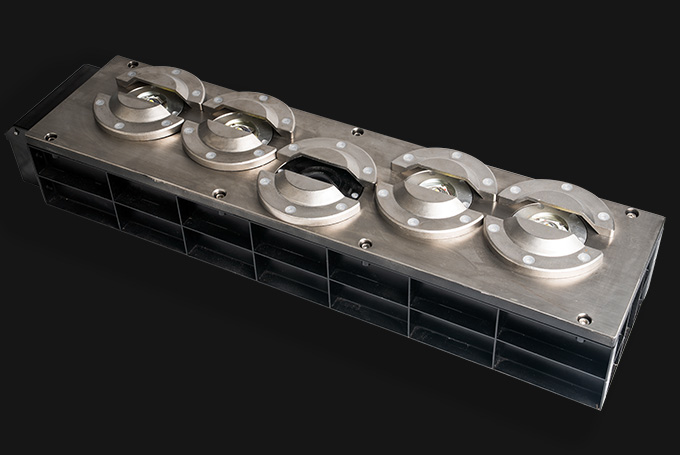

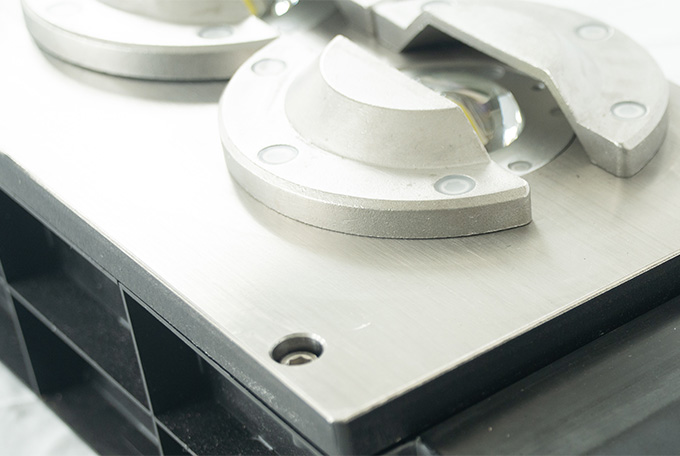

SCANNING UNIT
Housing Construction:
IP68-rated stainless steel enclosure, resistant to impact, water, and dust
Imaging System:
20 Megapixel high-resolution color hemispheric camera for full undercarriage coverage
Illumination System:
Four high-efficiency white LED lights for consistent imaging in all lighting conditions
Cabling:
10-meter cables for power supply, data transmission, and forced anti-moisture ventilation
Automatic Activation:
Dual induction coils for automatic scan triggering (entry/exit configurable)
image front image back image displacements

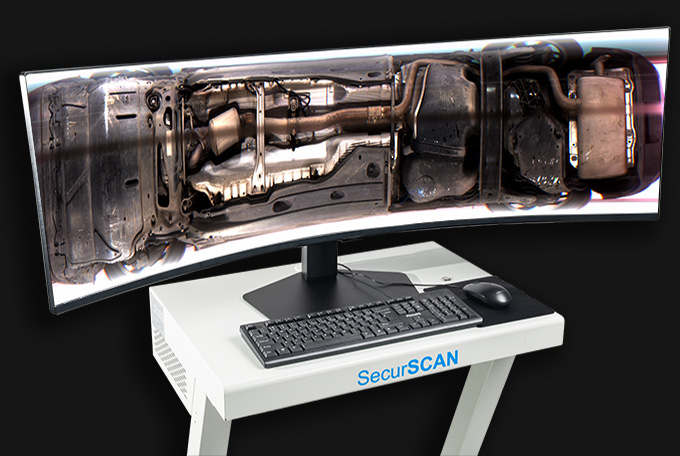

CONTROL AND MANAGEMENT UNIT
Embedded Processing System:
Integrated industrial PC housed in a dedicated enclosure, complete with keyboard, mouse, and a 49” high-resolution curved monitor
Management Software:
SDS Vision Pro software platform available in Italian or English
Digital Zoom Capability:
Up to 64× digital zoom with minimal detail degradation

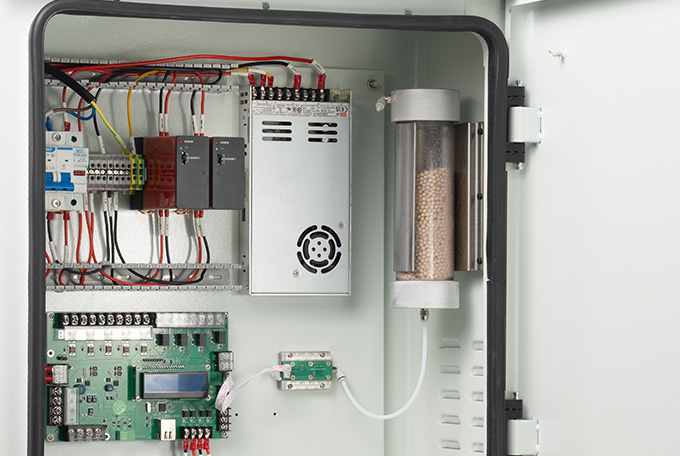

Centralized Control Unit:
IP68-rated distribution unit with integrated power supplies and PLC boards for centralized system management (Operating temperature range: −20°C to +50°C)
image front image back image displacements

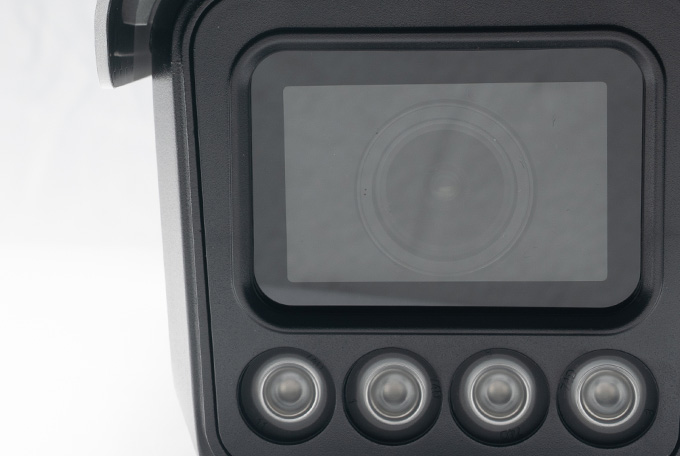

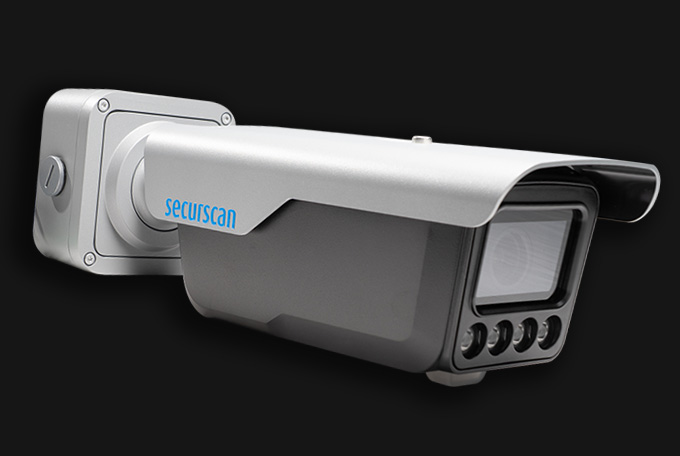

ANPR PLATE RECOGNITION
Deep Learning ANPR Engine:
Advanced ANPR system capable of accurately recognizing license plates, vehicle types, brands, and vehicle colors through deep learning algorithms
Intelligent Vehicle Detection:
Optimized for reliable vehicle detection and recognition in access control, traffic management, and high-security environments
Standalone Operation:
Performs core processing functions independently, without requiring external devices, simplifying deployment and system integration
Ruggedized Outdoor Design:
IP67 and IK10-rated housing, resistant to dust, water, and vandalism, suitable for harsh outdoor conditions
image front image back image displacements
SOFTWARE FEATURES
Integrated ANPR Processing:
Automatic Number Plate Recognition (ANPR) fully embedded within the SDS software platform
Scan Archive Management:
Inspection image archive indexed by license plate number or date for structured data retrieval

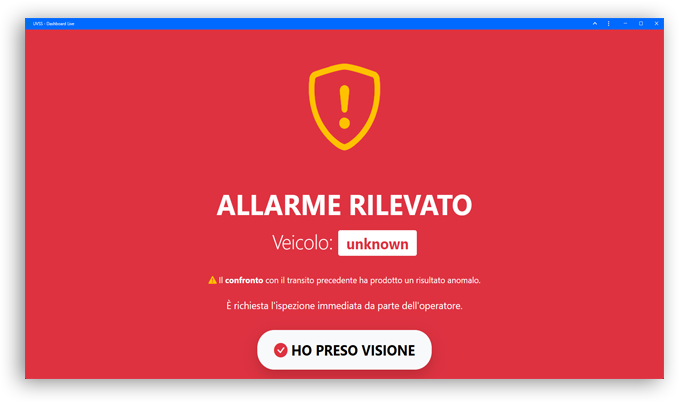

Automated Scan Comparison:
Automatic scan comparison with integrated event management functionality

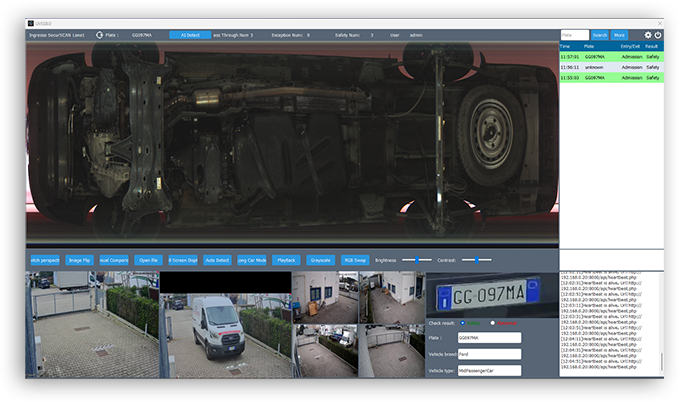

User Interface:
Intuitive graphical interface with real-time undercarriage image preview
